fleet management 720P ahd 4ch gps 3g sd card recording mdvr CMSV6 taxi camera system

FOB Reference Price:Get Latest Price
$173.00 - $181.00 / Pieces | 10 Piece/Pieces (Min. Order)
Type:
DVR MDVR
Channels:
4
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 5 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
KOPDA
Model Number:
KD-MDR9504-GPS/3G-system
Model No:
KD-MDR9504-GPS/3G-system
3G:
Yes
GPS:
Yes
WiFI:
optional
4G:
optional
IR Power ON:
CDS automatic control
Material:
Metal Housing
Power Supply:
DC12V -+ 10% / 650mA
Resolution:
4CH 720P
Max. SD card support:
256GB
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week mobile car dvr
Packaging & Delivery
Packaging Details
0.6KG/PC
mobile car dvr
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 5 To be negotiated
Video Description
Product Description
fleet management 720P ahd 4ch gps 3g sd card recording mdvr CMSV6 taxi camera system

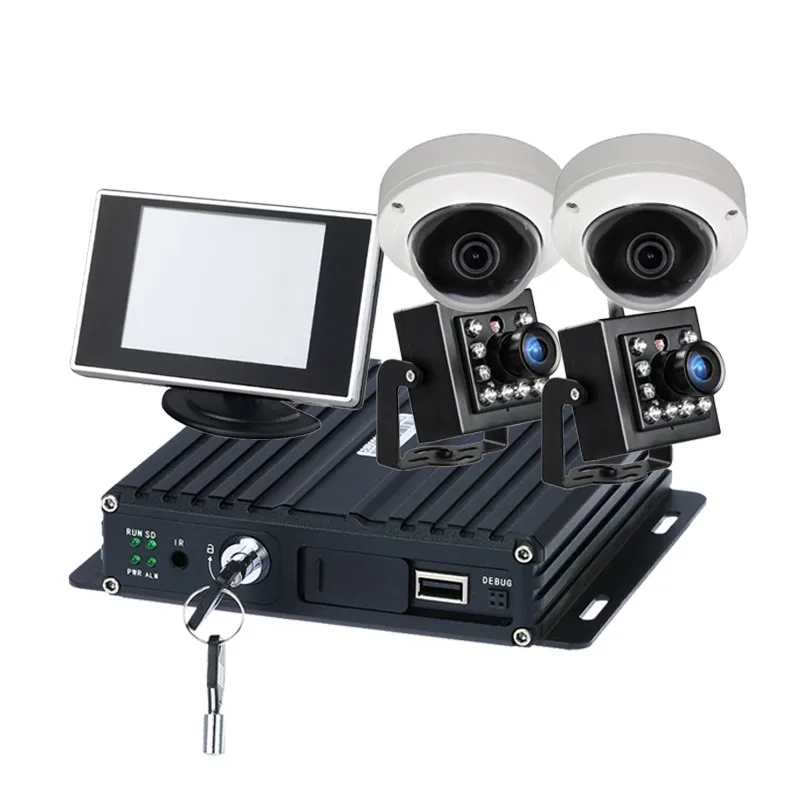

There are 4 camera:
1. one camera front view
2. one camera back view,to monitor the trunk.
we recommend you mini cube camera as below:

paramter for mini cube camera

960P AHD car camera with 4 pin plug
10PCs IR LED 10meters distance

1.3 Mega pixel(1280*960) CMOS Sensor;

3. one camera for driver, and one camera for passager, we recommend mini dome camera as below:

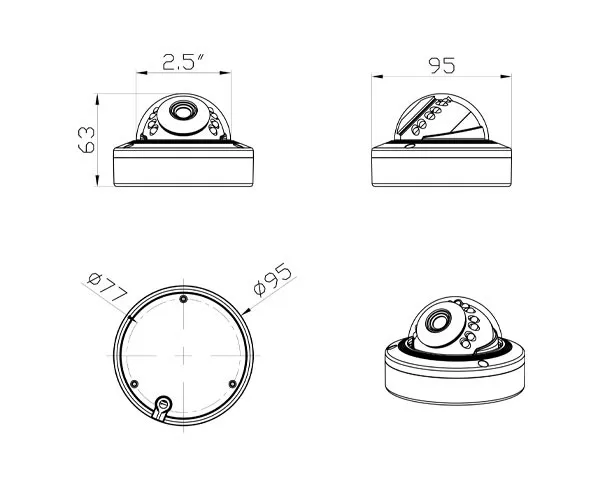

parameter for mini dome camera

Mini Metal dome camera
Lens:2.8MM
DC 12V
with 12 IR LED

chipset NVP2431+1/3" AR0130

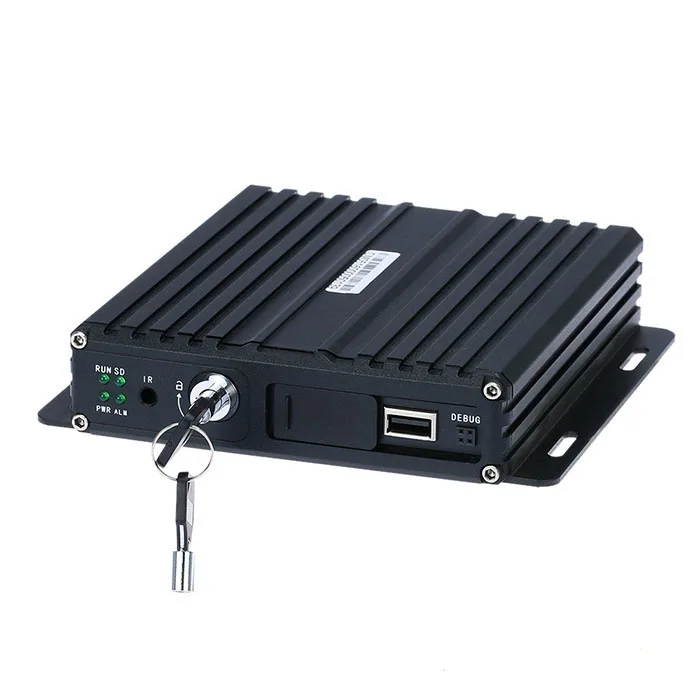

There is one MDVR, supprot GPS and 3G, remote view by PC and mobile phone, the app. is CMSV6.

AHD 720P mobile DVR
4 ch video and audio input,1ch audio output,1ch VGA output
1. Power adapter:
Professional design for vechile 9-36VDC voltage input(Standard ISO7637-P5A-200V/Static electricity GB/T-17626/RE radiation EN55022)
protection circuit for undervoltage, short circuit, reverse connection ect. suit for any typle vechile.
Support intelligent power management identification, low power automatic shutdown, turn off low power consumption;

2. data storage:
The use of special file management mechanism, the data encryption, effective protection of data security;
proprietary SD card bad sectors detection technology, both to ensure video continuity, but also extend the SD life;
Built-in super capacitor, to avoid abnormal power loss and SD card damage;
Support SD card storage, support 256G;


3. the interface transmission:

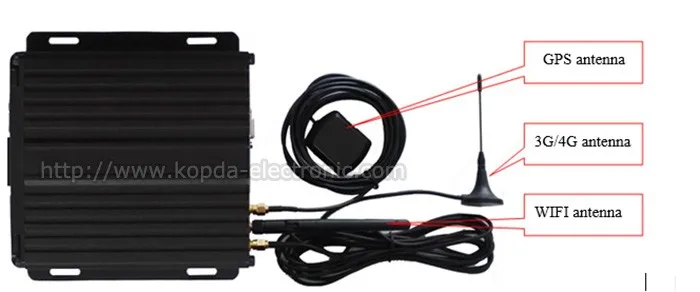

Support GPS / BD positioning, high sensitivity, fast positioning;
Support WIFI wireless download, support 802.11b / g / n, frequency 2.4GHz;(extra costs to get WiFi function)

4. support reversing image technology, and free configuration!

Main processor
Hi3520DV200
Operating system
Embedded Linux OS
Operating language
Chinese/English
Operating interface
GUI, Support mouse
Password security
User password/Admin password
Video standard
PAL/NTSC
Video compression
H.264
Image resolution
720P /960H/D1/CIF
Playback quality
720P /960H/D1/CIF
Compound mode
4ch 720P/4ch 960H/2ch 720P+2ch 960H
Decoding ability
1ch 720P real time
Recording quality
Class 1-6 optional
Image display
Single/QUAD display optional
Audio Compression
G.726
Audio recording
Audio & Video synchronized recording
Recording mode
Manual/Alarm
Video bit rate
Full frame 4096Mbps,6 classes image quality optional
Audio bit rate
8KB/s
Storage media
SD card storage
Video inquiry
Inquiry by channel/Recording type
Local playback
Playback by file
Upgrading mode
Manual/Automatical/Remote
Upgrading method
USB disk/Wireless network

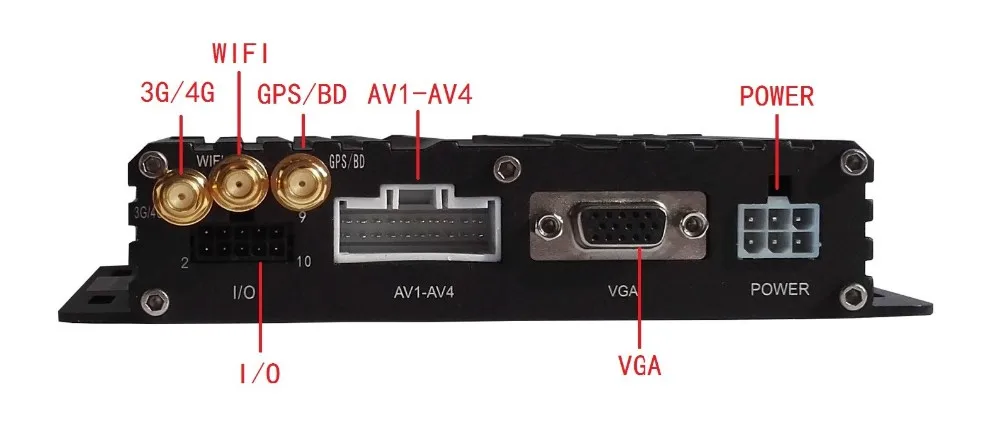

AV input
4ch aviation interface
AV output
1ch VGA video output, 1ch aviation AV output
Alarm input
4 digital inputs (2 Positive trigger, 2 negative trigger)
SD card
1 SDXC High speed card (up to 256G)
USB interface
1 USB 2.0 (support U disk/mouse)
Ignition input
1 ACC signal
UART
1 LVTTL Level
LED Indication
PWR/RUN/SD/ALM
SD card lock
1
Debug port
1
GPS
Support detecting antenna Plug in/Unplug/Short circuit
WIFI
802.11b/g/n, 2.4GHz
3G/4G
Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
Power input
9~32V DC
Power output
5V 300mA
Power consumption
Standby 3mA
Maximum consumption
Standby 3mA
Maximum consumption 18W @12V 1.5A @24V 0.75A
Working temperature
-20 --- 70℃





There is one 3.5inch monitor

With 4 pin aviation plug

Detailed Images
Main products

HDD recording

SD card recording

720P/960P/1080P

720P/960P/1080P

720P/960P/1080P

English and Arabic.

7inch and 9inch optional

Use for public bus
Packing & Delivery
