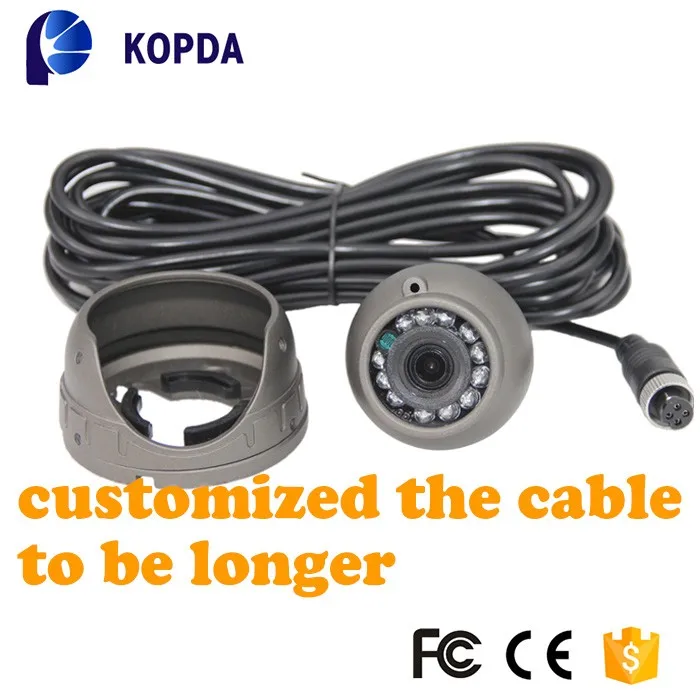

customized 3 meters cable AHD 960P 110 wide view angle school bus security cctv dome camera

FOB Reference Price:Get Latest Price
  • 30 - 99 Pieces
    $12.50
  • >=100 Pieces
    $11.90
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 Negotiable
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Type:
Reverse Camera
Voltage:
DC 12V
Power:
12W
Car Make:
General
Place of Origin:
Guangdong, China
Brand Name:
KOPDA
Model Number:
KD-AHD372-960
Warranty:
12 Months
Technology:
Infrared
IR LED:
12PCs F5
IR distance:
10 Meters
Lens:
2.8mm
resolution:
960P
item:
vehicle camera
Default chip:
V20E + 1/4"OV9732
customized:
Yes
connector:
4 pin aviation
keyboard:
bus dome camera
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
one piece per color box
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated
Video Description
Product Description

customized 3 meters cable AHD 960P 110 wide view angle school bus security cctv dome camera

Specification:
Use 1.0MP progressive scan CMOS, capture motion-free images
Support coaxial HD output, clear and exquisite images
Illumination, 0.1Lux @ (F1.2, AGC ON), 0LUX with IR
Support IR-CUT switch, CDS external control, day and night surveillance
Support OSD menu control for user-defined settings
Support for digital WDR
Adaptive digital noise reduction, 2D-DNR
Aviation connector


Technical Parameters:
Parameters: 1.3MP HD surveillance cameras in 1 coaxial module
Module Parameters
Sensor Type: ) NVP2431+1/3" AR0130

System format: PAL / NTSC
Effective pixels: 1280 (H) x960 (V)
Minimum illumination: 0.1Lux @ (F1.2, AGC ON), 0LUX with IR
IR LED:12PCs F5
IR Distance: 10Meters
Lens:2.8mm
Shutter: AUTO
Day and night modes: External Control (default) / Auto / color / B & W
Synchronization: Internal synchronization
Frame rate: 960P @ 25fps / 960P @ 30fps
Video Output: AHD / TVI / CVI / CVBS switchable
General Specifications
Operating temperature: -20 degrees Celsius to 60 degrees Celsius
Humidity: relative humidity less than 90%

Power - Current: DC12V (± 20%) - 50MA
Menu Switch Mode: The factory default AHD

signals:
Top: AHD: CVI Left: TVI Right: CVBS (press 5 seconds release the switch).

Standard switching:
PAL / NTSC switch directly inside the menu.

Model
KD-AHD372-960
Main Chip
High Performance NVP2431 Processor
Image Sensor
NVP2431+1/3" AR0130
Effective Pixels
1280 X 960P
Video Standard
AHD
Video System
PAL/NTSC Optional
Video output
1ch output
Video frames
PAL:1280x720@25fps ; NTSC:1280x720@30fps
Leds
12PCs IR LED
IR Distance
10Meters
Lens
2.8mm Fixed lens
Transmission Distance
Common 75-3 and above coaxial cable to transfer 500meters
Day and Night Function
Support IR-CUT Auto Switch
Input Voltage/Current
DC12V 1A
Power
6W±10%
Operation Temperature
-20℃~55℃
