4channal dvr gps 3g bus dvr with SD recording for remote access

FOB Reference Price:Get Latest Price
$38.00 - $121.00 / Pieces | 1 Piece/Pieces (Min. Order)
Memory Capacity:
16GB 32GB 64GB 128GB
Color:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Neutral
Model Number:
KD-MDR9504
Warranty:
1 Years
Video resolution:
H.264
Chip:
Hisilicon
Resolution:
720P/960H/D1/CIF
Video:
4/1
Audio:
4/1
VGA output:
Yes
voltage:
9-36VDC
Optional function:
3G/4G/WIFI/GPS
Data Storage:
1*128GB SD card
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
MVR Size:
142 * 152 * 32 (mm)
Box: 29.1*16.5*5.7cm
MVR NW.: 0.5KG
MVR GW:0.95
20PCs/CTNs
19.8KG/CTNs
60*34.7*31CM/CTNs
Port
shenzhen

4channal dvr gps 3g bus dvr with SD recording for remote access

Product Description



Technical parameter:

Item

Device parameter

Performance

System

Main processor

Hi3520DV200



Operating system

Embedded Linux OS



Operating language

Chinese/English



Operating interface

GUI, Support mouse



Password security

User password/Admin password

Audio

&

Video



Video standard

PAL/NTSC



Video compression

H.264



 Image resolution

720P /960H/D1/CIF



Playback quality

720P /960H/D1/CIF



Compound mode

4ch 720P/4ch 960H/2ch 720P+2ch 960H



Decoding ability

1ch 720P real time



Recording quality

Class 1-6 optional



Image display

Single/QUAD display optional



Audio Compression

G.726



Audio recording

Audio & Video synchronized recording

Recording & Playback

Recording mode

Manual/Alarm



Video bit rate

Full frame 4096Mbps,6 classes image quality optional



Audio bit rate

8KB/s



Storage media

SD card storage



Video inquiry

Inquiry by channel/Recording type



Local playback

Playback by file

Firmware upgrading

Upgrading mode

Manual/Automatical/Remote



Upgrading method

USB disk/Wireless network

Interface

AV input

4ch aviation interface



AV output

1ch VGA video output, 1ch aviation AV output



Alarm input

4 digital inputs (2 Positive trigger, 2 negative trigger)



SD card

1 SDXC High speed card (up to 256G)



USB interface

1 USB 2.0 (support U disk/mouse)



Ignition input

1 ACC signal



UART

1 LVTTL Level



LED Indication

PWR/RUN/SD/ALM



SD card lock

1



Debug port

1

Function extention

GPS

Support detecting antenna Plug in/Unplug/Short circuit



WIFI

802.11b/g/n, 2.4GHz



3G/4G

Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE

Others

Power input

9~32V DC



Power output

5V 300mA



Power consumption

Standby 3mA

Maximum consumption 18W  @12V 1.5A @24V 0.75A



Working temperature

-20 --- 70



Storage

720P   1G/h/channel

960H  750M/h/channel



Dimension

142*152*32 mm




Detailed Images



SD card installation

Please insert the SD card and SIM card into the slot as per the icon indication, Then close the SD cover and lock it (Please remember to lock it, otherwise, The SD card will not work)

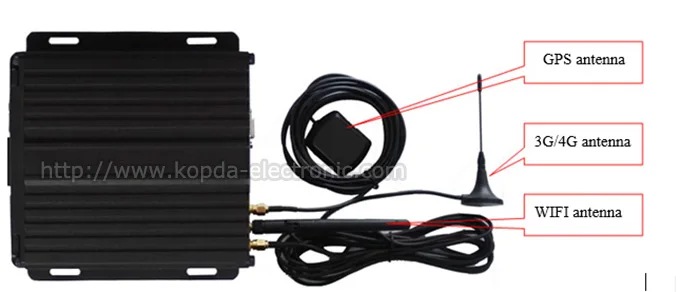

Antennas Connection

Please connect the WiFi and GPS antennas as per the picture as followed. We suggest you put the GPS antenna externally at the vehicle’s roof to make sure signal connection even when it is weak.(Wifi function is optional)



Power Connection.

The yellow ignition wire is used to detect the ignition signal. We strongly suggest you connect it with the “RUN” terminal of the ignition switch, or any terminal in the vehicle’s switch box which will have power only when the vehicle was ignited (f.g. the FM radio)

Figure 9. Cameras connection.

You can connect the camera with the AV input cable directly, or by extension cable (optional). The AV cable in the accessories box has mark on each connector, AV 1-4 are for cameras connection

Monitor connection.

The device supports VGA and CVBS output. You can switch the output mode to be the one you need by the mouse or remote control.
